Đàn Electone Yamaha EL57

Đàn Electone Yamaha EL57

Đàn organ nhà thờ Yamaha EL57 thuộc dòng Electone EL của Yamaha là một trong những mẫu được yêu thích trong nhiều năm phát hành vào năm 1998. Electone Yamaha EL57 được trang bị 32 âm thanh và 66 kiểu nhịp điệu.

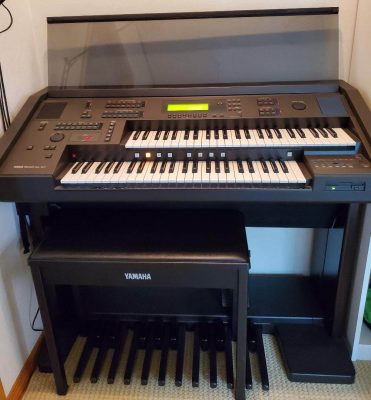

Đàn electone 2 tầng Yamaha EL57. Với ghế đàn nguyên bản. Chiều rộng X Chiều cao X Độ sâu = 112 x 93 x 48 cm.

THÔNG SỐ KỸ THUẬT

KEYBOARD
Upper: 49 keys (C – C), Lower: 49 keys (C – C), Pedal: 20 keys (C – G)

Touch Tone
Initial, After (Upper, Lead, Lower)

VOICE

Tone Generation
AWM & FM

Upper Keyboard Voice
Strings 1, 2, Pizz. Strings; Brass, Synth. Brass; Clarinet; Saxophone; Chorus; Organ, Pop Organ, Jazz Organ, Accordion;

Lower Keyboard Voice
Piano, Elec. Piano, Harpsichord; Guitar 1,2, Elec. Guitar, Harp; Vibraphone, Glockenspiel, Marimba, Synth. Chime;
Cosmic 1, 2, 3, 4; Tutti 1, 2; [Upper] Harmonica; [Lower] Horn 1, 2; User 1-4; (28 Buttons/32 Voices); Volume

Lead Voice
Violin; Flute, Whistle; Oboe, Bassoon; Trumpet 1, 2, Trombone; User 1-4;
To Lower; (6 Buttons/8 Voices) Volume

Pedalboard Voice
Contrabass, Pizz. Bass; Elec. Bass 1, 2, Synth. Bass; Organ Bass 1, 2; Tuba, Timpani; User 1-4; To Lower;
(6 Buttons/9 Voices) Volume

Voice Display
Upper, Lower, Lead, Pedal; Manual Balance

VOICE EDIT
On/Off; AWM: (Output Level); Operator 1, 2, 3, 4: (Output Level, Attack Rate, Decay 1 Rate, Decay 1 Level, Decay 2 Rate,
Release Rate); Operator Selectors, Operator On/Off Buttons; Save: User 1-4

EFFECT/CONDITION

Reverb
3Types: Room, Hall, Church; Length; Depth

Sustain
Upper (Knee), Lower (Knee), Pedal: Length

Tremolo/Chorus
Upper, Lead, Lower, Pedal; Tremolo (Fast): Speed, Chorus: Slow, Stop

Symphonic/Celeste
Upper, Lead, Lower, Pedal; Mode: Symphonic/Celeste

Vibrato
Upper, Lower, Lead, Pedal: Preset/User (Delay, Depth, Speed); Touch Vibrato

Delay
Upper, Lead, Lower: Speed, Feedback, Balance

Flanger
Upper, Lead, Lower: Speed, Feedback, Depth

Glide
Upper, Lead, Lower

Panning
Upper, Lead, Lower, Pedal (7 positions)

Feet
Upper, Lead, Lower, Pedal: Preset/4’/8’/16′

RHYTHM

Rhythms
March 1, 2, 3, Polka 1, 2, Country 1, 2, Broadway, Baroque; Waltz 1, 2, 3, 4, 5, Jazz Waltz 1, 2, 3, Bolero; Swing 1, 2, 3, 4, 5,
6, Jazz Ballad, Dixieland 1, 2; Bounce 1, 2, 3, Reggae 1, 2; Slow Rock 1, 2, 3; Tango 1, 2, 3; Chacha, Rhumba, Beguine,
Mambo, Salsa; Samba 1, 2, 3, Bossanova 1, 2, 3; 8Beat 1, 2, 3, 4, 5, Dance Pop 1, 2, 3, 4; 16Beat 1, 2, 3, 4, 5, 16 Beat Funk
1, 2, 3; User 1-8 (A-D); (12 Buttons; 66 Rhythms); Volume

Variations
Fill-In; Intro. Ending; Lead In; Auto Variation: On/Off

Others
Start; Synchro Start; Tempo; Bar/Beat LED; Volume; Balance

RHYTHM PROGRAM

Pattern Program
On/Off; Step Write/Real Time Write; Beat (4/4, 3/4, 2/4); Quantize ( , , , , , , , Off); Metronome (On/Off);
Edit: Instruments 1-16 (Change, Clear; Cursor); Accent Level 0-8; 75 Percussion Sounds; Accompaniment Select; Save:
User 1-8 (A-D, Fill-In); Remaning Memory Display

Rhythm Sequence
On/Off; Sequence 1-4; 120 Positions (Bar); Cursor Controls; Data: Preset/User (Set, Insert, Delete, Clear)

KEYBOARD PERCUSSION
On/Off: Lower, Pedal

ACCOMPANIMENT

Auto Bass Chord
Mode: Off; Single Finger; Fingered Chord; Custom ABC; Memory: Lower/Pedal

Accompaniments
Type 1, 2, 3, 4, All Off

MELODY ON CHORD
Mode: Off, 1, 2, 3; Knee: On/Off

BASIC REGISTRATION
1 – 5

REGISTRATION MEMORY
M/To Disk, 1-8; Disable Button

MUSIC DISK RECORDER
Play/Record: Upper, Lower, Pedal, Control, Lead, Keyboard Percussion; Pause; Stop; Song Select; Song Repeat; Song
Delete; Song Copy: From/To; Disk Copy; Tempo; Shift; Format; Custom Play; Remaining Memory; LED Display; Eject

FOOT SWITCH
[Left] Mode: Off; Rhythm (Stop, Ending, Fill-In); Glide (Upper/Lower, Lead); Tremolo (On/Off);
[Right] Regist. Shift Mode: Off, Shift, Jump, User (80 Positions, Cursor, Data, Set, Insert, Delete, Clear)

KNEE LEVER
On/Off: Sustain (Upper, Lower); MOC

LCD DISPLAY
256 x 64 Full Dot

OTHER CONTROLS
Power On/Off; Exp. Pedal; Pitch Control; Transpose; Master Volume; Display Select; Data Controls; Page; Coarse; Hold;
LCD Contrast; MIDI (Output; Upper/Lower, Int./Ext.: Lead, Sync., Exp.)

OTHER FITTINGS
Registration Menu Disk; 3.5″ Floppy Disk; Matching Bench; Keyboard Cover/Music Stand; MIDI IN/Out; Headphone Jack;
Rhythm In (Phone; R/L); Aux Out (Phone; R/L); Aux In/Out (RCA; R/L)

OPTIONAL ACCESSORIES
Voice Disk; HPE-170 Headphones; 3.5″ Floppy Disks

SOUND SYSTEM

Power Amplifiers
55W +55W (EIAJ)

Speakers
20cm x 2; 5cm x 2; Monitor x 2

DIMENSIONS Width x Depth x Height
114.9cm x 55.6cm x 98.0cm *With Keyboard Cover Closed

WEIGHT
81.5Kg

Hướng dẫn sử dụng chi tiết Electone Yamaha EL-57 manual: Tại đây
